HIGH-PRESSURE HYDRAULIC CIRCUIT PROTECTION.
Hydraulic systems are the most contamination-sensitive circuits in any mobile or stationary machine. Hydraulic control valves, pumps and actuators operate on tolerances measured in single-digit microns — any contamination that bypasses filtration accelerates wear exponentially, not linearly.
NANOFORCE™ multi-layer protection architecture is engineered specifically for the hydraulic circuit operating environment: high and variable pressure, temperature cycling from ambient to 85°C operating, and continuous flow pulsation from pump cycles that mechanically stress filter elements in ways that static test conditions do not capture.
Vapor control technology embedded in the NANOFORCE™ protection matrix addresses the hydraulic contamination source that conventional filters ignore — the vapor phase water and dissolved gas that forms free-phase contamination when hydraulic fluid temperature changes under load.

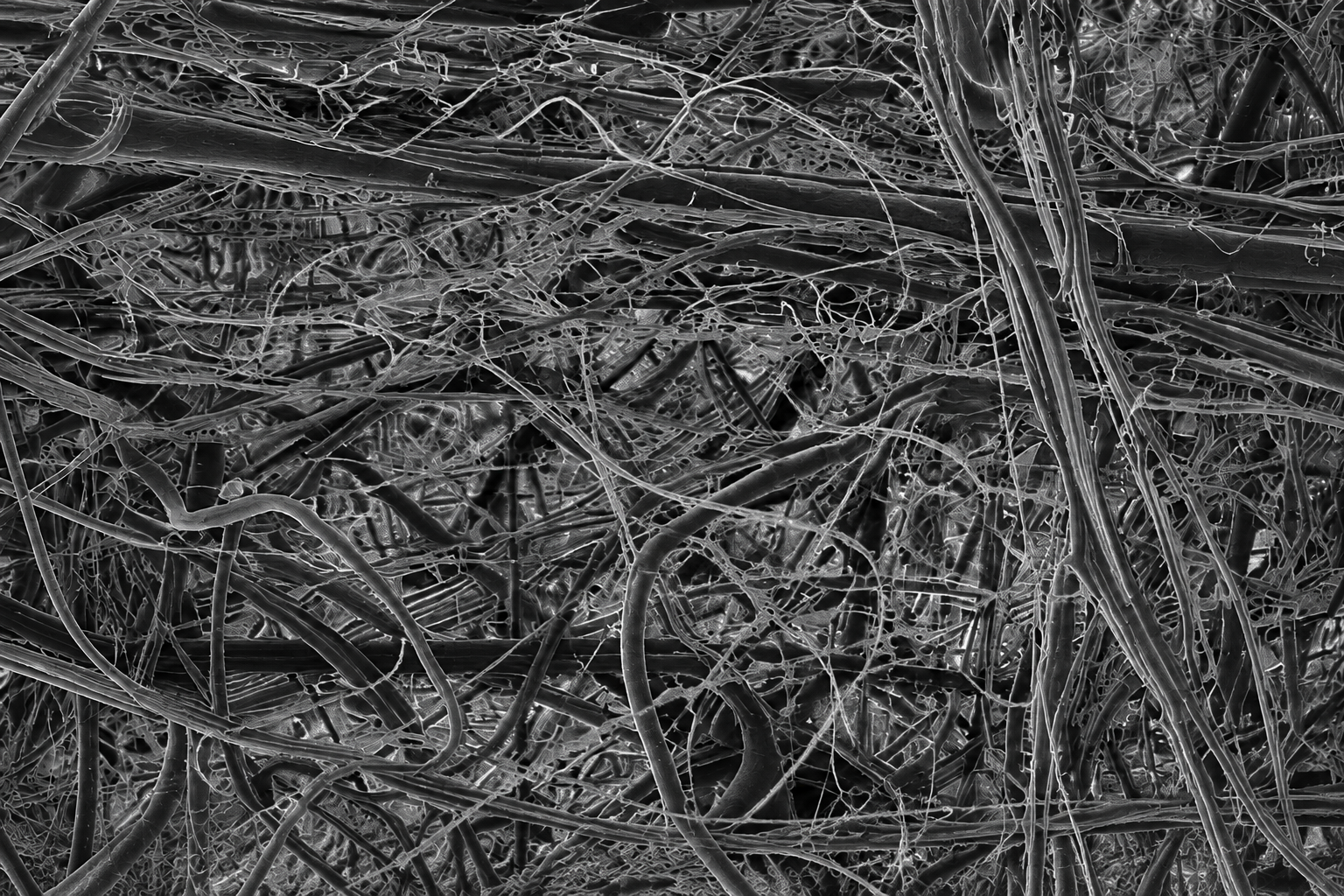

NANOFORCE™ · HYDRAULIC PRECISION GUARD ELEMENT
THREE LAYERS FOR HIGH-PRESSURE HYDRAULIC INTEGRITY.
MULTI-LAYER GUARD
The outer protection layer intercepts large metallic particles, rubber degradation products from hydraulic seals, and polymer contamination from hose liner breakdown. These contamination types are characteristic of hydraulic circuit aging and are the primary cause of valve spool scoring and pump gear wear. The guard layer capacity is sized for extended operation between hydraulic fluid service intervals.
VAPOR CONTROL BARRIER
The vapor control layer addresses dissolved water and entrained vapor contamination in hydraulic fluid — the invisible contamination that conventional hydraulic filters do not address. When hydraulic systems cycle between ambient and operating temperature, dissolved water in the fluid transitions to free-phase micro-droplets that cause control valve stiction and pump cavitation. The vapor control layer coalesces and captures this phase-transition water before it accumulates in critical actuator circuits.
STRUCTURAL INTEGRITY CORE
The innermost structural integrity layer is the NANOFORCE™ precision barrier and element backbone simultaneously. It achieves sub-micron particle interception while providing the anti-collapse structural support that prevents protection layer compression under high-flow pulsation events. The structural core maintains full element geometry under cold-start high-viscosity flow surges that can collapse conventional hydraulic filter elements and bypass filtration entirely.
FIELD SPECIFICATIONS
“Our excavators were experiencing control valve wear every 2,000 hours. After switching to NANOFORCE™ hydraulic protection, the last fleet inspection showed zero scoring at 4,500 hours. The vapor control layer is what our previous filters were missing.”
WHERE NANOFORCE™ PROTECTS
NANOFORCE™ hydraulic asset defense covers every hydraulic circuit type from mobile equipment to industrial fixed installations.
Excavators, hydraulic hammers and heavy lifting equipment where hydraulic contamination is the primary driver of control valve replacement costs. NANOFORCE™ vapor control layer addresses the water ingress issue that accelerates degradation in equipment operating in high-humidity environments.
Combine harvesters and tractors with hydraulic implement control circuits that must maintain precise flow control for variable rate applications. Sub-3-micron protection at the structural core maintains valve spool clearance integrity throughout the service season.
Hydraulic excavators and rock drills operating at sustained high cycle rates where pump and valve contamination wear is the dominant maintenance cost driver. NANOFORCE™ multi-layer protection extends hydraulic pump life and reduces unplanned maintenance events.
Industrial hydraulic presses and CNC machining center hydraulic systems where positioning accuracy depends on valve spool cleanliness. Sub-3-micron filtration at the structural core is the industry standard for precision manufacturing hydraulic circuits.
Shipboard hydraulic systems for steering gear, crane and hatch cover control where saltwater vapor ingress through reservoir breathers creates the dissolved water contamination that the NANOFORCE™ vapor control layer specifically addresses.
Turbine governor and control hydraulic systems where contamination-induced control valve stiction can cause load rejection events with significant operational and grid stability consequences.
FIND YOUR HYDRAULIC PROTECTION
Cross-reference 500,000+ OEM part numbers. Identify the exact NANOFORCE™ element for your hydraulic system specification.
