PROGRESSIVE DENSITY GRADIENT. NOT A SINGLE-LAYER BARRIER.
Single-density air filter elements reach their capacity limit at the surface — restricting airflow long before the interior protection capacity is utilized. MACROCORE™ Progressive Density Gradient (PDG) distributes contamination load across the full depth of the protection matrix, utilizing every layer from entry surface to core barrier.
The PDG architecture captures coarse particles at the outer zone, progressively smaller particles in the mid-layers, and sub-micron contamination at the core barrier — matching real-world air contamination distribution and eliminating premature restriction events.
Anti-collapse geometry engineered for 62 PSI differential pressure and continuous 120°C thermal rated operation ensures MACROCORE™ maintains full structural integrity and protection geometry under the most demanding industrial duty cycles.
MACROCORE™ · PROGRESSIVE DENSITY GRADIENT AIR PROTECTION
THREE DENSITY ZONES. FULL SPECTRUM PROTECTION.
MACRO-PARTICLE CAPTURE

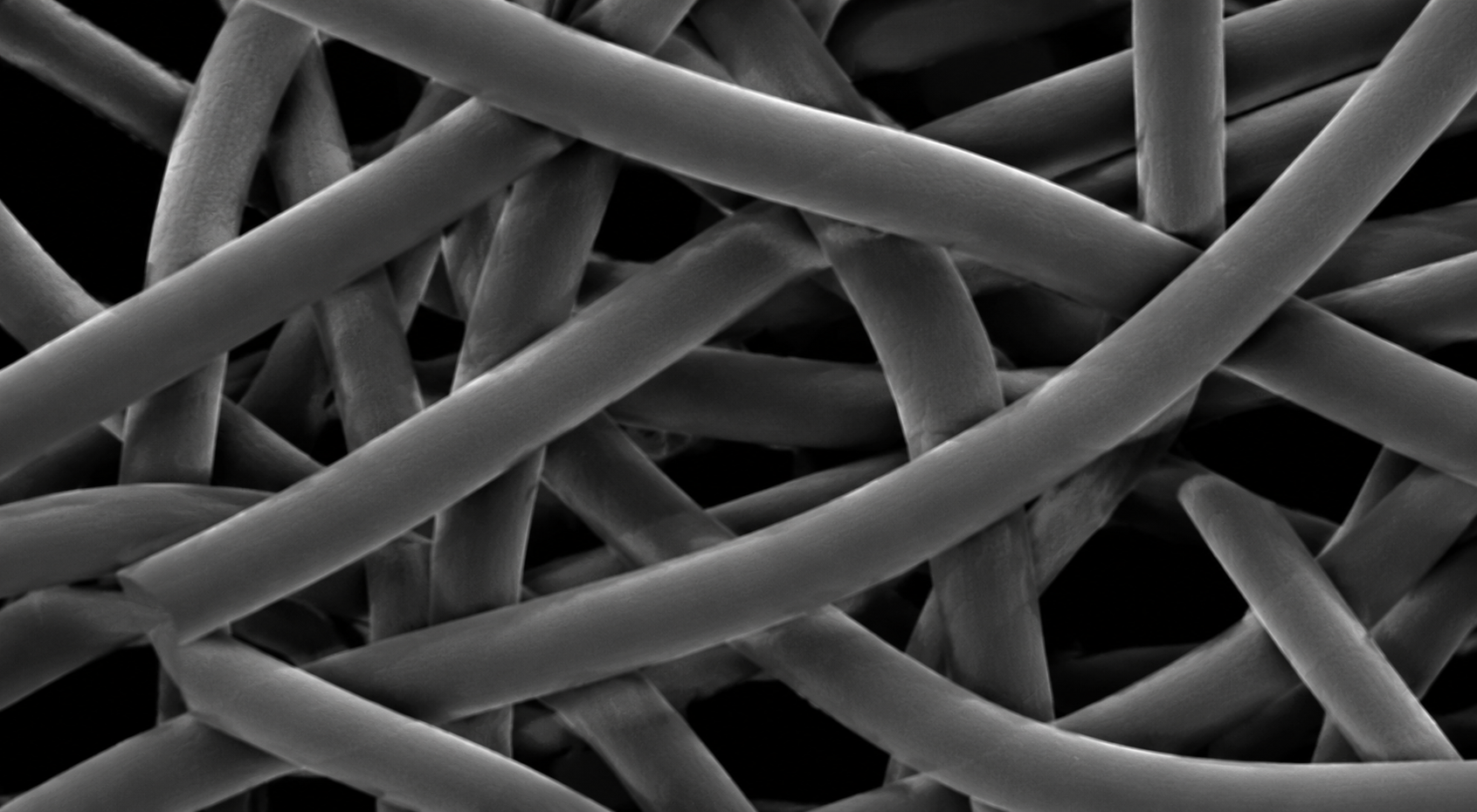

The outer protection zone is engineered with an open fiber architecture that intercepts coarse dust, soil aggregates and large carbon particles without restriction to air flow. By capturing the high-mass contamination fraction at the entry surface, the outer zone prevents premature loading of the precision inner layers and ensures the full contamination capacity of the protection matrix is utilized across the service interval.
GRADIENT DENSITY MATRIX
The gradient transition zone bridges between the coarse outer layer and the precision core barrier through a continuously increasing fiber density. Mid-range contamination — fine silica dust, agricultural crop residue, road surface particulate — is captured in this zone through a combination of inertial impact, interception and diffusion mechanisms. The gradient architecture prevents boundary layer bypass that occurs in step-change density designs.
INERTIAL IMPACT + DIFFUSION DEFENSE
The innermost protection layer combines two capture mechanisms that operate on different particle size classes simultaneously. Inertial impact captures particles with sufficient mass to deviate from air streamlines and contact fiber surfaces. Diffusion capture addresses sub-micron particles — those too light for inertial impact — through Brownian motion contact with the high-density core fiber matrix. The result: near-absolute protection across the full particle size spectrum.
FIELD SPECIFICATIONS
“We put MACROCORE™ to the test in our coal-loading operation — the highest-dust environment we run. Service intervals extended by 40% with zero bypass events recorded. The progressive density concept is real engineering, not marketing.”
WHERE MACROCORE™ PROTECTS
MACROCORE™ PDG air protection is validated for every motor type and industrial duty cycle category.
On-road diesel engines operating in high-particulate environments. MACROCORE™ PDG equidistant pleat geometry and anti-collapse construction prevent restriction-induced intake starvation on high-output turbocharged power units.
24/7 off-highway extraction equipment in extreme dust environments where silica contamination rates can exceed 10× on-road benchmarks. PDG progressive loading extends service intervals that would overwhelm conventional single-density elements.
Combines and tractors operating in crop residue and soil dust environments during peak harvest periods. The outer macro-particle capture zone handles the high-volume contamination load characteristic of combine harvesting operations.
Stationary industrial engines and compressors where air intake protection is critical to maintain combustion efficiency and prevent abrasive wear of cylinder bores and piston rings.
Excavators, bulldozers and graders operating on earthwork sites where fine silica dust is the dominant contamination challenge. The gradient core captures sub-micron silica fractions that reach the element after inertial pre-separation.
Compressors, blowers and industrial prime movers where air intake cleanliness directly determines service life of precision internal components and downstream process quality.
FIND YOUR AIR PROTECTION
Cross-reference 500,000+ OEM part numbers. Identify the exact MACROCORE™ element for your engine or compressor specification.
